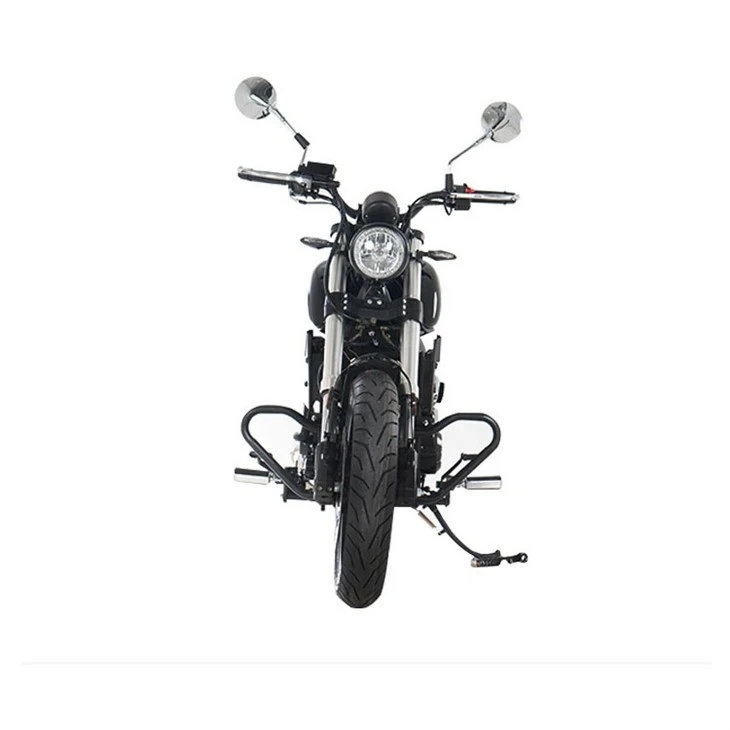

400CC Retro Motorcycle

L x W x H

2150x770x1120mm

Wheelbase

1420mm

Fuel Tank Capacity

About 1.8L when changing oil;

About 1.9L when disassembling

Reduction Gearbox Lubricating Oil Capacity

0.38L

Gas Tank Capacity

17L

Number of Passengers

One driver and one passenger each

Rated Load

168kg (including passengers)

Frame Form

Double beam

Rear Flat Fork

Rectangular tube

Front Braking System

300mm double disc

Rear Braking System

240mm single disc

ABS

Optional

Engine

Engine Form

Water-cooled, parallel twin cylinder, overhead camshaft

Number of Valves

4 valves

Bore x Stroke

64mmx57mm

Compression Ratio

10:1

Cylinder Volume

367ml

Clutch Form

Oil bathmulti-chip

Spark Plug Model

D7RTC

Spark Plug Electrode Gap

0.6-0.7mm

Minimum No-load Stable Speed

1300±100r/min

Maximum Net Power and Corresponding Speed

20.6kw/8300rpm

Maximum Torque and Corresponding Speed

28N.m/6200rpm

Continuous Rotation Ratio

2.583~0.857

Final Stage Rotation Ratio

3.091

Reach Angle

28°

Tire

Front tire: 110/70-17; Rear tire: 170/70-17

Fuel Consumption

≤4.6L/100km

Climbing Ability

≥18°

Maximum Design Speed

150km/h

Minimum Ground Clearance

145mm

0-100 Starting Acceleration

7.2s

Fuel Supply

Closed loop electronic injection

Electrical System

Battery Specifications

12V-7A.h

Magneto Power

0.22kw(5000r/min)

Headlight Specifications

12V55W/55W

Brake Light/Rear Position Light Specifications

12V21W/5W

Turn Signal Light Specifications

12V10Wx4

Front Position Light Specifications

12V5W

Instrument Lighting Specifications

12V1.7Wx2

Turn Signal Indicator Specifications

12V3.4Wx2

High Beam Indicator Specifications

12V1.7W

Main Fuse

20A

Secondary Fuse

15A

Vehicle Configuration

Seat Cushion

Nubuck leather front and rear

Forged Parts

Shock-absorbing bottom tube, connecting plate, steering handle

Light

LED

Instrument

LCD screen

Muffler Forward Bend

304 stainless steel, air storage bag

Exhaust Pipe

304 stainless steel
