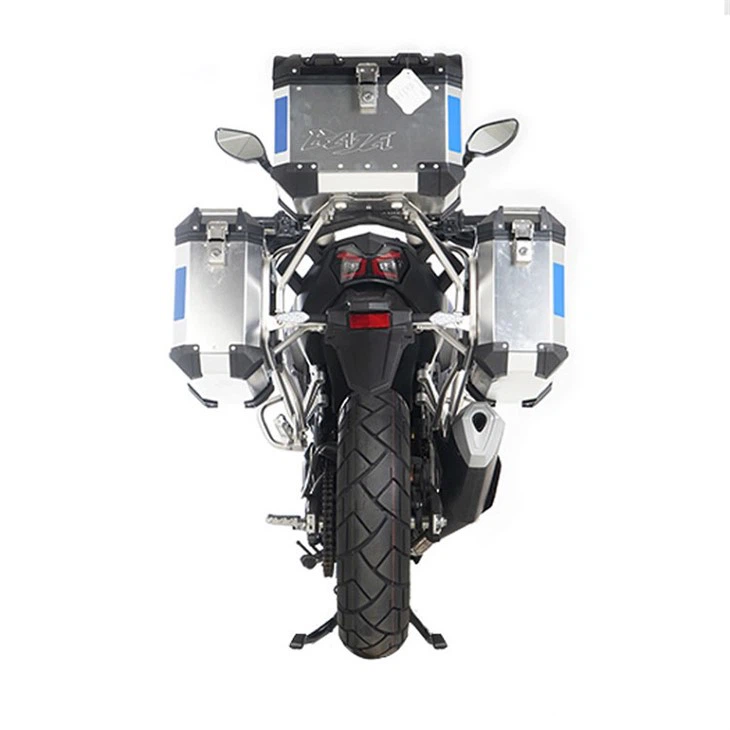

Adventure Touring Motorcycle

Dimension

2160x850x1330mm

Reach angle

27°

Wheel base

1520mm

Tyre size/Front

120/70-19

Oil tank capacity

2.5L-2.6L

Tyre size/Rear

160/60-17

0.43L

Fuel consumption

≤4.8L/100km

Fuel tank capacity

20L

Climbing capacity

≥18°

Capacity person

2person (with driver)

Max. design speed

180km/h

Rated load capacity

202kg (with driver)

Ground clearance

210mm

Frame type

Woven frame

Starting acceleration

5.8s

Rear fork

Aluninum alloy double rocker arm

Fuel supply

Closed loop EFI

Front brake type

320mm Double disc, two-way four-piston radial caliper

Battery type

12V-12Ah

Rear brake type

240mm Single disc, one-way single-piston floating caliper

Magneto power

0.22kw(5000r/min)

ABS

Front and rear dual channels

Headlamp specifications

12V55W/55W

Engine type

Water-cooled, twin-cylinder, twin-camshaft

Brake light/rear position light specifications

12V21W/5W

Number of Valves

8 valves

Turn signal light specifications

12V10Wx4

Bore*stoke

67mmx66.8mm

Front position light specifications

12V5W

Compression Ratio

10.7:1

Instrument lighting specifications

12V1.7Wx2

Cylinder volume/Actual

471ml

Turn signal indicator specifications

12V3.4Wx2

Cylinder volume/Integer

500

High beam indicator light specifications

12V1.7W

Clutch type

Wet multi-plate 6-speed chain drive

Main fuse

20A

Spark type

CPR8EA

Sub fuse

15A

Spark electrode gap

0.9+0.1mm

Seat

Self-absorbing skin front&rear

Minimum no-load stable speed

1400±140r/min

Forged parts

Shock-absorbing bottom tabe, connecting plate, steering handle

Maximum net power and corresponding speed

35kw/8500rpm

Light

LED

Maximum torque and corresponding speed

45N.m/7000rpm

Speedometer

Machanical pointer + LCD screen

Continuous rotation ratio

2.902~0.808

Muffler forward bend

304 Stainless steel, gas storage bag

Final stage rotation ratio

3.692

Exhaust pipe

304 Stainless steel, stainless steel cover
